| ブランド名: | TENDARS |
| モデル番号: | PM-G-8x12m |
| MOQ: | 1セット |
| 価格: | USD 73-166 / Square Meter |
| パッケージの詳細: | PVC生地は丈夫な織布袋に折り畳まれ、アルミニウムのプロファイルは保護フィルムで束ねられ、輸出グレードの合板箱に梱包されています。 |
| 支払条件: | T/T、L/C、ウェスタンユニオン |

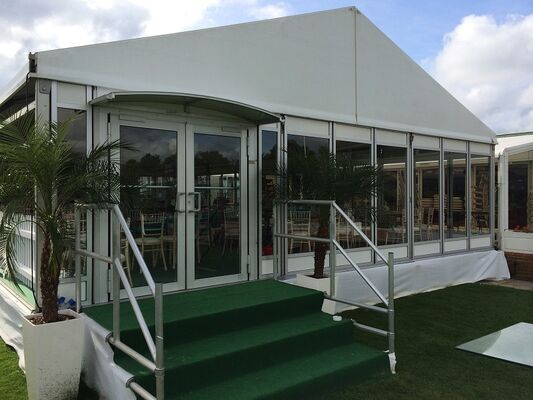

This 8x12m glass wall panels g series a-frame A-frame marquee tent is professionally engineered for vip cocktail reception and outdoor celebrations. Designed with a clear span structure that eliminates interior support poles, it provides an unobstructed event space ideal for seating up to 96 guests.
The frame is manufactured from 6061/T6 hard pressed extruded aluminum alloy with anodized anti-rust surface treatment, ensuring exceptional structural integrity and a service life exceeding 20 years. All aluminum profiles are precision-cut using advanced CNC machinery with tight tolerance control (±0.2mm), guaranteeing seamless assembly and reliable performance under demanding conditions.
The roof features 850g/m² double PVC-coated polyester fabric with UV-stabilized acrylic surface treatment. This high-performance material delivers superior waterproofing, UV resistance, and flame retardancy certified to DIN4102 B1 / M2 standards. The fabric withstands temperatures from -30°C to +70°C, making it suitable for year-round deployment across diverse climate zones.
This model features aluminum frame glass wall system, providing an elegant appearance and enhanced functionality for vip cocktail reception. The 3.0m eave height with 5.5m ridge height creates a spacious, airy interior atmosphere perfect for high-end events.
| Parameter | Specification |
|---|---|
| Frame Material | 6061/T6 Hard Pressed Extruded Aluminum Alloy |
| Surface Treatment | Anodized Anti-Rust (Silver/Black/Custom) |
| Roof Cover | 850g/m² Double PVC Coated Polyester, UV Stabilized |
| Span Width | 8m |
| Length | 12m (Modular, Expandable) |
| Eave Height | 3.0m |
| Wind Load Rating | 100 km/h (EN 13782) |
| Snow Load Capacity | 0.5 kN/m² |
| Fire Certification | DIN4102 B1 / M2 |
| Temperature Range | -30°C to +70°C |
| Seating Capacity | Up to 96 guests |
The modular bay system (5m standard bay distance) allows the tent length to be extended indefinitely. Multiple units can be combined side-by-side for extra-wide configurations, making this an infinitely scalable solution for events of any scale.
Certified installation crews can complete setup of this 8x12m structure within 1-2 working days, significantly faster than permanent construction. The modular bolt-together design requires no heavy machinery, and the entire system can be disassembled, transported, and re-erected at different venues repeatedly.
We offer comprehensive OEM/ODM services including custom sizes, colors (frame and fabric), logo printing on PVC covers, and tailored accessory packages to match your brand requirements.
|
|
