| ブランド名: | Tendars |
| モデル番号: | TDT 米国認定 |
| MOQ: | 25平方メートル |
| 価格: | USD 45-75 per Square Meter |
| パッケージの詳細: | すべてのパッケージに ANSI 準拠のラベルが貼られています。 UL マークを取得した電気部品。米国通関用の標準パレット |
| 支払条件: | T/T、L/C、電信送金USD |

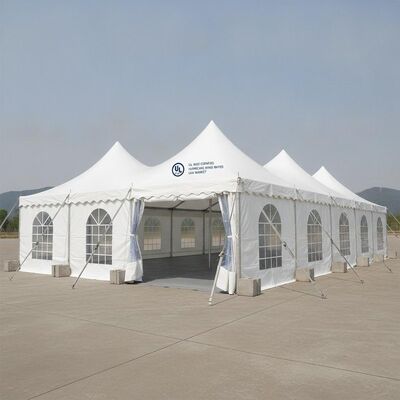

Engineered specifically for North American standards and conditions. Our Party Marquee Tent carries UL electrical safety certification, ANSI structural compliance, and NFPA 701 fire retardant certification — meeting every major USA regulatory requirement for commercial event tents.
| Certification | Standard | Scope | Market Relevance |
|---|---|---|---|
| UL Electrical Safety | UL 1640 Portable Power Distribution | All electrical components lighting power | Required by USA event venues insurers |
| ANSI Structural | ANSI E1.21 Temporary Structures | Frame engineering wind load testing | USA building code permit compliant |
| NFPA 701 | Flame Propagation Textiles | Roof sidewall PVC fabric | Fire marshal approval all USA states |
| ASTM D751 | Coated Fabrics Testing | Tensile tear adhesion UV resistance | USA commercial tent fabric standard |
| Step | Process | Equipment | Quality Control |
|---|---|---|---|
| 1. Raw Material | 6082 T6 aluminum billet ingot inspection | Spectrometer composition analysis | ASTM B221 6082 T6 certification per batch |
| 2. Extrusion | 1600 ton hydraulic press hot extrusion at 480°C | Custom die profiles 4-cavity molds | Real time profile gauge laser measurement |
| 3. Aging | T6 artificial aging furnace 175°C for 8 hours | Computer controlled temperature chamber | Brinell hardness test minimum 95 HBW |
| 4. CNC Cutting | 5 axis CNC machining center precision cutting | DMG MORI CMX 1100V CNC 0.01mm accuracy | Each batch first piece inspection CMM report |
| 5. Hole Drilling | CNC drilling tapping center multi spindle | Brother TC-S2Dn high speed drill tap | Go no go gauge 100% inspection |
| 6. Deburring | Automated vibratory deburring machine | Walther Trowal continuous flow system | Visual inspection all surfaces edge checking |
| 7. Surface Treatment | 5 stage pretreatment plus powder coating | Gema automatic powder coating line | Coating thickness 60-80μm adhesion cross hatch test |
| 8. Assembly Test | Pre assembly random sample per production batch | Full frame mock up with fabric | Dimensional tolerance check fit gap verification |
| Parameter | Test Standard | Our Value | Industry Average | Advantage |
|---|---|---|---|---|
| Base Fabric Weight | ASTM D3776 | 850 gsm | 650 gsm | 30% heavier longer service life |
| Tensile Strength Warp | ASTM D5034 | 3800 N / 5cm | 2800 N / 5cm | 36% stronger for wind loading |
| Tensile Strength Weft | ASTM D5034 | 3500 N / 5cm | 2600 N / 5cm | 35% stronger cross direction |
| Tear Strength Warp | ASTM D2261 | 650 N | 450 N | 44% higher tear resistance |
| Tear Strength Weft | ASTM D2261 | 580 N | 400 N | 45% higher tear resistance |
| Adhesion | ASTM D751 | 120 N / 5cm | 90 N / 5cm | 33% better coating bond |
| Cold Crack | ASTM D2136 | -40°C no cracking | -30°C | 10°C lower for Canada winter |
| UV Resistance | ASTM G154 Xenon Arc | 5000 hours Grade 4 plus | 3000 hours | 67% longer sun exposure life |
| Fire Retardant | NFPA 701 Method 1 | Passes with margin | Pass borderline | Consistent batch compliance |
| Water Resistance | ASTM D751 Hydrostatic | 2000 mm water column | 1500 mm | 33% higher waterproof rating |
| Wind Speed | Test Method | Configuration | Result | Application |
|---|---|---|---|---|
| 80 km/h | Wind tunnel scale model 1:10 | Standard stake anchoring | No deformation stable | Normal USA event conditions |
| 120 km/h | Wind tunnel with fabric flutter | Reinforced anchoring all corner | Minor fabric flutter frame stable | Tropical storm conditions |
| 150 km/h | Full scale field test at coastal site | Full guying system storm anchors | Frame stable fabric under tension | Category 1 hurricane zone |
| 170 km/h | Finite Element Analysis computer | Heavy duty steel anchors concrete | Survivable with engineering | Custom engineered for extreme |
A: Yes. Our tent carries UL electrical certification, ANSI structural compliance, and NFPA 701 fire retardant. These are the three essential certifications required by US event venues, insurers, and fire marshals across all 50 states.
A: For Florida and Gulf Coast states, we recommend our 150km/h rated configuration with full guying system and storm anchors. For Category 2+ hurricane zones, contact us for custom engineering with embedded concrete anchoring specifications.
A: We maintain a Los Angeles warehouse with common spare parts and replacement fabric panels. Standard shipping within USA is 3-5 business days. Emergency air freight from factory is 5-7 business days.
|
|
