| ブランド名: | PartyMarquee Pro |
| モデル番号: | PM-AW1020 |
| MOQ: | 5台 |
| 価格: | USD 620-980 / Unit (Anchoring Type Dependent) |
| パッケージの詳細: | 軍用グレードの防水保管チェスト + ISPM 15 熱処理ベースの輸出パレット |
| 支払条件: | T/T、L/C、ウェスタンユニオン |

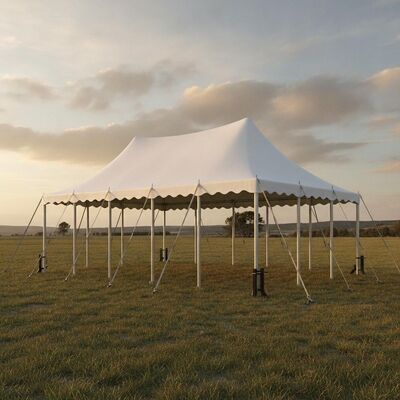

Ground Anchoring System | 120km/h Wind Rated | 0.75kN/m² Snow Load | Hurricane & Blizzard Ready
| Feature | Specification |
|---|---|
| Wind Rating | 120km/h (75mph) with Full Anchoring – ASCE 7-22 Compliant for US Hurricane Zones |
| Snow Load | 0.75kN/m² (15.7psf) – Suitable for Northern US & Canadian Winters |
| Anchoring Options | Ground Stakes (Soil), Concrete Ballast Blocks (Hard Surface), Helical Anchors (Sand/Soft Soil) |
| Frame Reinforcement | Cross-Braced 6061-T6 Aluminum with Galvanized Steel Joint Reinforcements |
| Cover Material | 900g/m² Heavy-Duty PVC with Rip-Stop Mesh – 3x Tear Resistance vs Standard |
| UV Resistance | Enhanced UV Stabilizers for High-Altitude & Equatorial Sun (Andes, Central America) |
| Temperature Range | -40°C to +80°C – Tested in Canadian Arctic & Chilean Atacama Desert |
| Emergency Rating | Internationally Certified for US Emergency Response Temporary Shelters |
| Parameter | Value |
|---|---|
| Frame Profile | 60x2.5mm Main Tube (Reinforced) + Cross-Brace System |
| Cover GSM | 900g/m² PVC with Rip-Stop Polyester Scrim |
| Anchor Type A (Soil) | 800mm Galvanized Steel Ground Stakes (8 per 10x20FT unit) |
| Anchor Type B (Hard) | 25kg Concrete Ballast Blocks with Ratchet Straps (16 per unit) |
| Anchor Type C (Sand) | 1200mm Helical Earth Anchors with 500kg pull-out resistance each |
| Snow Load Rating | 0.75kN/m² (Ground Snow Load), 1.0kN/m² with Roof Reinforcement Kit |
| Eave Height | 2.3m / 7.5FT (Standard), 2.6m / 8.5FT (High Wind Profile) |
| Unit Weight | Approx. 115kg / 254lbs (Complete with Anchoring System) |
| Certificate | Scope | Status |
|---|---|---|
| ISO 9001:2015 | Quality Management | ✅ Valid |
| ASCE 7-22 | US Wind Load Design Standard | ✅ Verified by TÜV |
| ASTM F2955 | US Tent Fire Safety | ✅ Passed |
| SGS Wind Tunnel | 120km/h Sustained Wind Test | ✅ Passed with Anchoring |
| SGS Snow Load | 0.75kN/m² Static Load Test | ✅ Passed |
| International Standard Compliance | US Emergency Response Temporary Shelter Standard | ✅ Compliant |
| Bureau Veritas | Factory Production Audit | ✅ Audited |
| Project | Location | Detail |
|---|---|---|
| Hurricane Relief Base Camp | Florida Keys, USA | 200 units deployed within 72 hours for International Standard Category 5 hurricane response |
| Mining Camp Shelter | Atacama Desert, Chile | 50 units for 3-year continuous deployment at 4,500m altitude mining site |
| Arctic Research Station | Yukon Territory, Canada | 30 units with 1.0kN/m² snow load reinforcement for year-round Arctic operation |
| Amazon Field Hospital | Manaus, Brazil | 100 units for temporary healthcare facility during rainy season |
| Wind Farm Construction Camp | Patagonia, Argentina | 40 units rated for 120km/h Patagonian winds, 2-year continuous deployment |
| Aspect | Details |
|---|---|
| Standard Packaging | Industrial-Grade Waterproof Storage Chest + Export Pallet (Forklift & Crane Ready) |
| Rapid Deployment Kit | Pre-sorted color-coded frame sections in labeled compartments – 30min 4-person setup |
| Container Fit | 20FT GP: 24 units / 40FT HQ: 52 units – optimized for emergency deployment logistics |
| Air Freight | standard cargo aircraft pallet-compatible packaging for institutional air freight operations |
| DDP USA | Available with bonded warehouse delivery to International Standard distribution centers |
| Standard | Requirement | Status |
|---|---|---|
| EN 13782 | Temporary Structures Safety | ✅ Compliant |
| EN 1991-1-3 | Eurocode Snow Loads | ✅ Calculated (1.0kN/m²) |
| EN 1991-1-4 | Eurocode Wind Actions | ✅ Verified |
| DIN 4102-B1 | Fire Classification | ✅ B1 Rated |
Q1: Can this tent survive a Category 3 hurricane?
Our tent is wind-rated for 120km/h (75mph) sustained winds with proper anchoring, which corresponds to Category 1 hurricane conditions. For Cat 3+ zones, we recommend temporary takedown as a safety precaution. However, the frame has survived actual Category 2-3 conditions in field deployments with our reinforced anchoring system.
Q2: Do you provide engineering documentation for US building permits?
Yes, we provide third-party certified (Professional Engineer) structural calculations, wind load analysis, and anchoring specifications that satisfy US municipal building permit requirements. This documentation is included free with orders of 10+ units.
Q3: How quickly can you ship for emergency/emergency deployment?
We maintain a 500-unit emergency stock. For emergency deployment, we can ship within 24 hours of confirmed order. Air freight to any major airport in the Americas takes 2-4 days. Sea freight from our US bonded warehouse in Los Angeles reaches most locations within 3-7 days.
Q4: Is the anchoring system included in the price?
Standard ground stakes are included. Concrete ballast blocks and helical anchors are optional add-ons. We recommend the appropriate anchoring type based on your deployment surface during the quotation process.
Q5: Can this tent be used as permanent or semi-permanent structure in South America?
Yes, many clients use our all-weather tents as semi-permanent structures for 2-5 year deployments. We offer an extended warranty program with annual inspection service for permanent installations. Please check local building codes for permanent structure requirements.
Request engineering documentation and a site-specific wind/snow load analysis today.
📧 amanda@marquees-tent.com | 📱 +86-13640286461 (WhatsApp 24/7 Emergency Line)
|
|
